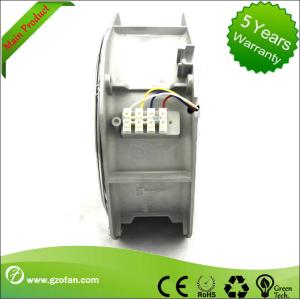

Resemble EBM-Past Dc Cooling Fans 120W HVAC Industry Sheet Steel 254*89
| Type | Nominal voltage (VAC) | Frequency (HZ) | Rated Speed (RPM) | Power (W) | Air Flow (m³/h) | Sound pressure (dB) | Prem.amb.temp |
| ZX254N-24D3-00 | 24 | 50/60 | 2300 | 120 | 1609 | 55 | -20~+60 |
1． Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control
2． Enable the selection of different power levels thus to get the best match of price and performance according to customers’load requirements
3． As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation
4． Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system
5． Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation
OFAN provides the most comprehensive services, includes: product diversification, against the clock delivery, documents support, and technical consulting service. “Customer is partner” is key to our success; ”Win the contract for customer” is our ultimate goal
1. Are you a factory or trading company?
We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM
2. How do I know which model I should choose
Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
3. Can we buy a sample for testing?
Sure, you are welcomed to buy a sample before mass order.
4. if the fans doesn't work well, what shall I do ?
If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
If after one year, we will supply you the right parts to replace at low price.
